昨天的晚会让人脸识别又火了，转载一篇来自 CSDN JireRen 的精彩博文，借花献佛给大家一起尝试DIY树莓派上的人脸识别。

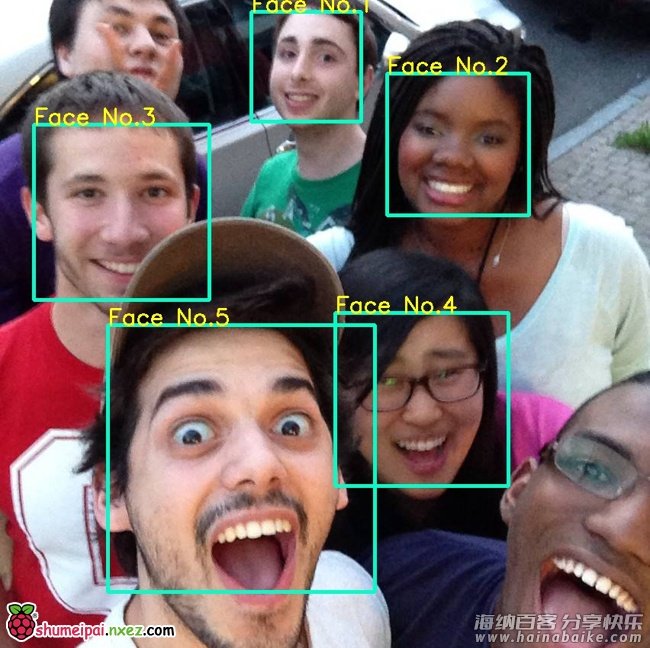

使用树莓派2和OpenCV制作一个简易的人脸识别和追踪系统。
所需硬件
需要：树莓派2、Pi Camera

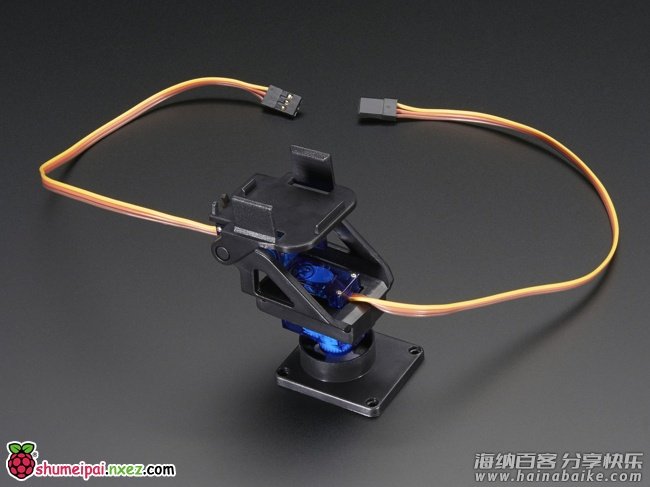

非必须（如果需要追踪人脸运动，需要一个有两个马达的小云台）：云台
安装OpenCV
sudo apt-get update sudo apt-get upgrade sudo apt-get install python-opencv
安装PiCamera

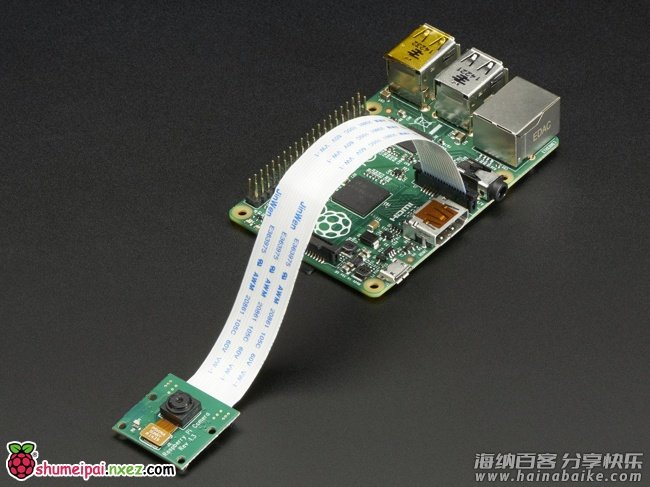

由于我没有使用USB摄像头，而是用了特殊的Pi Camera，样子如下图， 所以需要安装PiCamera来控制摄像头。
安装PiCamera:
sudo apt-get install python-pip sudo apt-get install python-dev sudo pip install picamera
至此人脸识别所需要的准备工作已经完成，可以使用下面的演示代码进行测试。
示例代码
Demo.1
第一个演示只使用单核，由于树莓派的性能有限，在只使用一个CPU核心的情况下视频的帧数非常之低，只有5帧左右，效果不太理想， 另外代码中通过Servo Blaster 控制云台的电机，来实现追踪人脸的功能，不过考虑到这个功能不是必须，所以不在此进行介绍。
### Imports ###################################################################
from picamera.array import PiRGBArray
from picamera import PiCamera
import time
import cv2
import os
### Setup #####################################################################
# Center coordinates
cx = 160
cy = 120
os.system( "echo 0=150 > /dev/servoblaster" )
os.system( "echo 1=150 > /dev/servoblaster" )
xdeg = 150
ydeg = 150
# Setup the camera
camera = PiCamera()
camera.resolution = ( 320, 240 )
camera.framerate = 60
rawCapture = PiRGBArray( camera, size=( 320, 240 ) )
# Load a cascade file for detecting faces
face_cascade = cv2.CascadeClassifier( '/home/pi/opencv-2.4.9/data/lbpcascades/lbpcascade_frontalface.xml' )
t_start = time.time()
fps = 0
### Main ######################################################################
# Capture frames from the camera
for frame in camera.capture_continuous( rawCapture, format="bgr", use_video_port=True ):
image = frame.array
# Use the cascade file we loaded to detect faces
gray = cv2.cvtColor( image, cv2.COLOR_BGR2GRAY )
faces = face_cascade.detectMultiScale( gray )
print "Found " + str( len( faces ) ) + " face(s)"
# Draw a rectangle around every face and move the motor towards the face
for ( x, y, w, h ) in faces:
cv2.rectangle( image, ( x, y ), ( x + w, y + h ), ( 100, 255, 100 ), 2 )
cv2.putText( image, "Face No." + str( len( faces ) ), ( x, y ), cv2.FONT_HERSHEY_SIMPLEX, 0.5, ( 0, 0, 255 ), 2 )
tx = x + w/2
ty = y + h/2
if ( cx - tx > 10 and xdeg <= 190 ): xdeg += 3 os.system( "echo 0=" + str( xdeg ) + " > /dev/servoblaster" )
elif ( cx - tx < -10 and xdeg >= 110 ):
xdeg -= 3
os.system( "echo 0=" + str( xdeg ) + " > /dev/servoblaster" )
if ( cy - ty > 10 and ydeg >= 110 ):
ydeg -= 3
os.system( "echo 1=" + str( ydeg ) + " > /dev/servoblaster" )
elif ( cy - ty < -10 and ydeg <= 190 ): ydeg += 3 os.system( "echo 1=" + str( ydeg ) + " > /dev/servoblaster" )
# Calculate and show the FPS
fps = fps + 1
sfps = fps / ( time.time() - t_start )
cv2.putText( image, "FPS : " + str( int( sfps ) ), ( 10, 10 ), cv2.FONT_HERSHEY_SIMPLEX, 0.5, ( 0, 0, 255 ), 2 )
# Show the frame
cv2.imshow( "Frame", image )
cv2.waitKey( 1 )
# Clear the stream in preparation for the next frame
rawCapture.truncate( 0 )
[WPGP gif_id=”3055″ width=”600″]
另外请注意由于我使用HaarCascade来进行人脸检测， 需要使用到识别人脸的XML，这些人脸识别的XML文件是随着OpenCV一起安装的，不需要额外的安装， 不过当你在自己树莓派上运行时，请注意调整XML文件的路径， 就是调整这一行：
# Load a cascade file for detecting faces face_cascade = cv2.CascadeClassifier( '你的XML文件路径' )
Demo.2
通过同时使用不同的XML文件，可以实现同时识别不同物体的功能，比如下面这段代码可以同时识别人脸和黑色手机，识别手机所需要的XML文件是由Radamés Ajna和Thiago Hersan制作的， 来源在这里。 更进一步的，我们可以根据自己的需要训练自己的Cascade文件，Naotoshi Seo在此处 给出了详细的教程， 比较简易的还有Thorsten Ball的香蕉识别教程。
### Imports ###################################################################
from picamera.array import PiRGBArray
from picamera import PiCamera
import time
import cv2
import os
import pygame
### Setup #####################################################################
os.putenv('SDL_FBDEV', '/dev/fb1')
# Setup the camera
camera = PiCamera()
camera.resolution = ( 320, 240 )
camera.framerate = 40
rawCapture = PiRGBArray( camera, size=( 320, 240 ) )
# Load the cascade files for detecting faces and phones
face_cascade = cv2.CascadeClassifier( '/home/pi/opencv-2.4.9/data/lbpcascades/lbpcascade_frontalface.xml' )
phone_cascade = cv2.CascadeClassifier( 'cascade.xml' )
t_start = time.time()
fps = 0
### Main ######################################################################
# Capture frames from the camera
for frame in camera.capture_continuous( rawCapture, format="bgr", use_video_port=True ):
image = frame.array
# Look for faces and phones in the image using the loaded cascade file
gray = cv2.cvtColor(image,cv2.COLOR_BGR2GRAY)
faces = face_cascade.detectMultiScale(gray)
phones = phone_cascade.detectMultiScale(gray)
# Draw a rectangle around every face
for (x,y,w,h) in faces:
cv2.rectangle( image, ( x, y ), ( x + w, y + h ), ( 255, 255, 0 ), 2 )
cv2.putText( image, "Face No." + str( len( faces ) ), ( x, y ), cv2.FONT_HERSHEY_SIMPLEX, 0.5, ( 0, 0, 255 ), 2 )
# Draw a rectangle around every phone
for (x,y,w,h) in phones:
cv2.rectangle( image, ( x, y ), ( x + w, y + h ), ( 255, 0, 0 ), 2 )
cv2.putText( image, "iPhone", ( x, y ), cv2.FONT_HERSHEY_SIMPLEX, 0.5, ( 0, 255, 255 ), 2 )
# Calculate and show the FPS
fps = fps + 1
sfps = fps / ( time.time() - t_start )
cv2.putText( image, "FPS : " + str( int( sfps ) ), ( 10, 10 ), cv2.FONT_HERSHEY_SIMPLEX, 0.5, ( 0, 0, 255 ), 2 )
cv2.imshow( "Frame", image )
cv2.waitKey( 1 )
# Clear the stream in preparation for the next frame
rawCapture.truncate( 0 )
[WPGP gif_id=”3053″ width=”600″]
由于使用了更多的XML文件进行识别，帧数降低到了2~3帧。
Demo.3
为了解决帧数较低的问题，有一个比较简单的方法就是跳帧，可以不对每一帧图像都进行识别，而是隔几帧识别一次（因为最初因为懒不想将程序写成多线程，但是为了提高帧数，所以有了这个蛋疼的方法…）。
### Imports ###################################################################
from picamera.array import PiRGBArray
from picamera import PiCamera
import time
import cv2
import os
import pygame
### Setup #####################################################################
os.putenv( 'SDL_FBDEV', '/dev/fb1' )
# Setup the camera
camera = PiCamera()
camera.resolution = ( 320, 240 )
camera.framerate = 30
rawCapture = PiRGBArray( camera, size=( 320, 240 ) )
fcounter = 0
facefind = 0
# Load a cascade file for detecting faces
face_cascade = cv2.CascadeClassifier( '/home/pi/opencv-2.4.9/data/lbpcascades/lbpcascade_frontalface.xml' )
t_start = time.time()
fps = 0
### Main ######################################################################
# Capture frames from the camera
for frame in camera.capture_continuous( rawCapture, format="bgr", use_video_port=True ):
image = frame.array
# Run the face detection algorithm every four frames
if fcounter == 3:
fcounter = 0
# Look for faces in the image using the loaded cascade file
gray = cv2.cvtColor( image, cv2.COLOR_BGR2GRAY )
faces = face_cascade.detectMultiScale( gray )
print "Found " + str( len( faces ) ) + " face(s)"
if str( len( faces ) ) != 0:
facefind = 1
facess = faces
else:
facefind = 0
# Draw a rectangle around every face
for ( x, y, w, h ) in faces:
cv2.rectangle( image, ( x, y ), ( x + w, y + h ), ( 200, 255, 0 ), 2 )
cv2.putText( image, "Face No." + str( len( facess ) ), ( x, y ), cv2.FONT_HERSHEY_SIMPLEX, 0.5, ( 0, 0, 255 ), 2 )
facess = faces
else:
if facefind == 1 and str( len( facess ) ) != 0:
# Continue to draw the rectangle around every face
for ( x, y, w, h ) in facess:
cv2.rectangle( image, ( x, y ), ( x + w, y + h ), ( 200, 255, 0 ), 2 )
cv2.putText( image, "Face No." + str( len( facess ) ), ( x, y ), cv2.FONT_HERSHEY_SIMPLEX, 0.5, ( 0, 0, 255 ), 2 )
fcounter += 1
# Calculate and show the FPS
fps = fps + 1
sfps = fps / ( time.time() - t_start )
cv2.putText( image, "FPS : " + str( int( sfps ) ), ( 10, 10 ), cv2.FONT_HERSHEY_SIMPLEX, 0.5, ( 0, 0, 255 ), 2 )
cv2.imshow( "Frame", image )
cv2.waitKey( 1 )
# Clear the stream in preparation for the next frame
rawCapture.truncate( 0 )
[WPGP gif_id=”3051″ width=”600″]
这样子帧数会提高到10帧左右，已经不像原来那么卡顿，但是当你移动速度很快的时候，识别框会出现滞后。
Demo.4
毕竟跳帧只是权宜之计，这个版本使用了全部的CPU核心，帧数稳定在了15帧左右。
### Imports ###################################################################
from picamera.array import PiRGBArray
from picamera import PiCamera
from functools import partial
import multiprocessing as mp
import cv2
import os
import time
### Setup #####################################################################
os.putenv( 'SDL_FBDEV', '/dev/fb0' )
resX = 320
resY = 240
cx = resX / 2
cy = resY / 2
os.system( "echo 0=150 > /dev/servoblaster" )
os.system( "echo 1=150 > /dev/servoblaster" )
xdeg = 150
ydeg = 150
# Setup the camera
camera = PiCamera()
camera.resolution = ( resX, resY )
camera.framerate = 60
# Use this as our output
rawCapture = PiRGBArray( camera, size=( resX, resY ) )
# The face cascade file to be used
face_cascade = cv2.CascadeClassifier('/home/pi/opencv-2.4.9/data/lbpcascades/lbpcascade_frontalface.xml')
t_start = time.time()
fps = 0
### Helper Functions ##########################################################
def get_faces( img ):
gray = cv2.cvtColor( img, cv2.COLOR_BGR2GRAY )
faces = face_cascade.detectMultiScale( gray )
return faces, img
def draw_frame( img, faces ):
global xdeg
global ydeg
global fps
global time_t
# Draw a rectangle around every face
for ( x, y, w, h ) in faces:
cv2.rectangle( img, ( x, y ),( x + w, y + h ), ( 200, 255, 0 ), 2 )
cv2.putText(img, "Face No." + str( len( faces ) ), ( x, y ), cv2.FONT_HERSHEY_SIMPLEX, 0.5, ( 0, 0, 255 ), 2 )
tx = x + w/2
ty = y + h/2
if ( cx - tx > 15 and xdeg <= 190 ): xdeg += 1 os.system( "echo 0=" + str( xdeg ) + " > /dev/servoblaster" )
elif ( cx - tx < -15 and xdeg >= 110 ):
xdeg -= 1
os.system( "echo 0=" + str( xdeg ) + " > /dev/servoblaster" )
if ( cy - ty > 15 and ydeg >= 110 ):
ydeg -= 1
os.system( "echo 1=" + str( ydeg ) + " > /dev/servoblaster" )
elif ( cy - ty < -15 and ydeg <= 190 ): ydeg += 1 os.system( "echo 1=" + str( ydeg ) + " > /dev/servoblaster" )
# Calculate and show the FPS
fps = fps + 1
sfps = fps / (time.time() - t_start)
cv2.putText(img, "FPS : " + str( int( sfps ) ), ( 10, 10 ), cv2.FONT_HERSHEY_SIMPLEX, 0.5, ( 0, 0, 255 ), 2 )
cv2.imshow( "Frame", img )
cv2.waitKey( 1 )
### Main ######################################################################
if __name__ == '__main__':
pool = mp.Pool( processes=4 )
fcount = 0
camera.capture( rawCapture, format="bgr" )
r1 = pool.apply_async( get_faces, [ rawCapture.array ] )
r2 = pool.apply_async( get_faces, [ rawCapture.array ] )
r3 = pool.apply_async( get_faces, [ rawCapture.array ] )
r4 = pool.apply_async( get_faces, [ rawCapture.array ] )
f1, i1 = r1.get()
f2, i2 = r2.get()
f3, i3 = r3.get()
f4, i4 = r4.get()
rawCapture.truncate( 0 )
for frame in camera.capture_continuous( rawCapture, format="bgr", use_video_port=True ):
image = frame.array
if fcount == 1:
r1 = pool.apply_async( get_faces, [ image ] )
f2, i2 = r2.get()
draw_frame( i2, f2 )
elif fcount == 2:
r2 = pool.apply_async( get_faces, [ image ] )
f3, i3 = r3.get()
draw_frame( i3, f3 )
elif fcount == 3:
r3 = pool.apply_async( get_faces, [ image ] )
f4, i4 = r4.get()
draw_frame( i4, f4 )
elif fcount == 4:
r4 = pool.apply_async( get_faces, [ image ] )
f1, i1 = r1.get()
draw_frame( i1, f1 )
fcount = 0
fcount += 1
rawCapture.truncate( 0 )
帧数上升到了13左右，而且识别框没有延迟。
[WPGP gif_id=”3048″ width=”600″]
Demo.5
搞定了低帧数问题，我又试了试多核加跳帧…帧数可到28帧左右。
### Imports ###################################################################
from picamera.array import PiRGBArray
from picamera import PiCamera
from functools import partial
import multiprocessing as mp
import cv2
import os
### Setup #####################################################################
os.putenv( 'SDL_FBDEV', '/dev/fb0' )
resX = 320
resY = 240
# Setup the camera
camera = PiCamera()
camera.resolution = ( resX, resY )
camera.framerate = 90
t_start = time.time()
fps = 0
# Use this as our output
rawCapture = PiRGBArray( camera, size=( resX, resY ) )
# The face cascade file to be used
face_cascade = cv2.CascadeClassifier( '/home/pi/opencv-2.4.9/data/lbpcascades/lbpcascade_frontalface.xml' )
### Helper Functions ##########################################################
def get_faces( img ):
gray = cv2.cvtColor( img, cv2.COLOR_BGR2GRAY )
return face_cascade.detectMultiScale( gray ), img
def draw_frame( img, faces ):
global fps
global time_t
# Draw a rectangle around every face
for ( x, y, w, h ) in faces:
cv2.rectangle( img, ( x, y ),( x + w, y + h ), ( 200, 255, 0 ), 2 )
# Calculate and show the FPS
fps = fps + 1
sfps = fps / (time.time() - t_start)
cv2.putText(img, "FPS : " + str( int( sfps ) ), ( 10, 10 ), cv2.FONT_HERSHEY_SIMPLEX, 0.5, ( 0, 0, 255 ), 2 )
cv2.imshow( "Frame", img )
cv2.waitKey( 1 )
### Main ######################################################################
if __name__ == '__main__':
pool = mp.Pool( processes=4 )
i = 0
rList = [None] * 17
fList = [None] * 17
iList = [None] * 17
camera.capture( rawCapture, format="bgr" )
for x in range ( 17 ):
rList[x] = pool.apply_async( get_faces, [ rawCapture.array ] )
fList[x], iList[x] = rList[x].get()
fList[x] = []
rawCapture.truncate( 0 )
for frame in camera.capture_continuous( rawCapture, format="bgr", use_video_port=True ):
image = frame.array
if i == 1:
rList[1] = pool.apply_async( get_faces, [ image ] )
draw_frame( iList[2], fList[1] )
elif i == 2:
iList[2] = image
draw_frame( iList[3], fList[1] )
elif i == 3:
iList[3] = image
draw_frame( iList[4], fList[1] )
elif i == 4:
iList[4] = image
fList[5], iList[5] = rList[5].get()
draw_frame( iList[5], fList[5] )
elif i == 5:
rList[5] = pool.apply_async( get_faces, [ image ] )
draw_frame( iList[6], fList[5] )
elif i == 6:
iList[6] = image
draw_frame( iList[7], fList[5] )
elif i == 7:
iList[7] = image
draw_frame( iList[8], fList[5] )
elif i == 8:
iList[8] = image
fList[9], iList[9] = rList[9].get()
draw_frame( iList[9], fList[9] )
elif i == 9:
rList[9] = pool.apply_async( get_faces, [ image ] )
draw_frame( iList[10], fList[9] )
elif i == 10:
iList[10] = image
draw_frame( iList[11], fList[9] )
elif i == 11:
iList[11] = image
draw_frame( iList[12], fList[9] )
elif i == 12:
iList[12] = image
fList[13], iList[13] = rList[13].get()
draw_frame( iList[13], fList[13] )
elif i == 13:
rList[13] = pool.apply_async( get_faces, [ image ] )
draw_frame( iList[14], fList[13] )
elif i == 14:
iList[14] = image
draw_frame( iList[15], fList[13] )
elif i == 15:
iList[15] = image
draw_frame( iList[16], fList[13] )
elif i == 16:
iList[16] = image
fList[1], iList[1] = rList[1].get()
draw_frame( iList[1], fList[1] )
i = 0
i += 1
rawCapture.truncate( 0 )
[WPGP gif_id=”3047″ width=”600″]
跳帧加多核，强行30帧哈哈，不过还是建议最终使用Demo4。
这篇博客节选翻译自我自己的课程报告， 同样的内容也出现于我自己的英文博客， 最后出镜的是我的搭档Andre Heil。
via 转自 JireRen 的博客。
标签： 树莓派hardwareraspberrypilevel4编程pythonpytmultimedia人脸识别
文章来源：
树莓派实验室
版权声明：本站资源来自互联网收集,仅供用于学习和交流,请遵循相关法律法规,本站一切资源不代表本站立场,如有侵权、后门、不妥请联系本站删除。
评论列表
